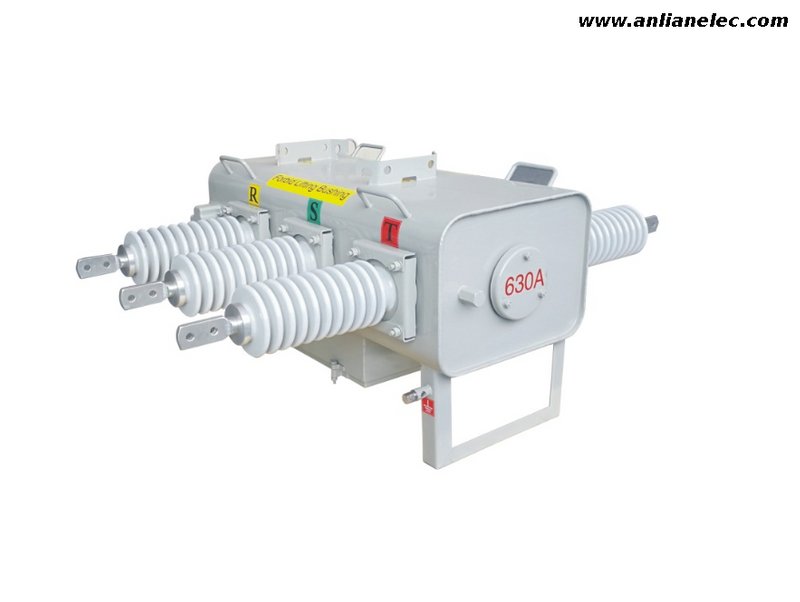

FLW34 Outdoor SF6 Gas Insulated Load Break Switch

Product Introduction:

The FLW34 outdoor pole-mounted SF6 gas-insulated load break switch is designed for distribution networks with rated voltages of 12/24/40.5kV and rated currents of 630A. It is primarily used for switching load currents and overload currents in power systems, as well as automatically isolating faulted sections. Equipped with the latest electronic controller, it supports manual, motorized, and remote operations, greatly enhancing system automation and reliability.

Key Features:

1. Multiple Operation Modes: Supports manual, motorized, and remote operations, offering flexibility for various application needs.

2. Durable and Robust: Constructed with a stainless-steel enclosure, resistant to corrosion, and suitable for harsh weather conditions.

3. Efficient Fault Isolation: Capable of quickly isolating faulted sections of distribution lines to ensure system safety.

4. Remote Monitoring and Control: Equipped with wired and wireless modems for remote monitoring and control, facilitating maintenance and management.

5. Easy Installation: Simple and quick pole-mounted setup, reducing installation time and costs.

Specifications:

• Rated voltage: 12/24/40.5kV

• Rated current: 630A

• Frequency: 50/60Hz

• Insulation medium: SF6 gas

• Operation modes: Manual, motorized, remote operation

• Protection level: IP65

Application Range:

The FLW34 load break switch is widely used in urban and rural distribution networks, particularly in areas requiring high reliability and remote control, such as industrial parks, urban power distribution systems, and wind farms. Its efficient load management and fault isolation capabilities make it ideal for modern power systems.

Installation Notes:

1. Choose a suitable pole-mounted location to ensure the switch operates in a stable environment.

2. Check all wiring terminals before installation to ensure secure connections.

3. Ensure the switch is installed vertically for precise and stable operation.

4. Verify the SF6 gas pressure is within the normal operating range before use.

Precautions:

1. Strictly follow local safety regulations during installation to ensure the safety of personnel and equipment.

2. Always adhere to the operation steps outlined in the manual to avoid mishandling.

3. Regularly inspect the electronic controller and SF6 gas pressure to ensure stable long-term operation.

4. Not suitable for installations in environments with severe vibrations, corrosive gases, or extreme conditions.

5. If any abnormalities occur, cease operation immediately and contact professional personnel for inspection.
