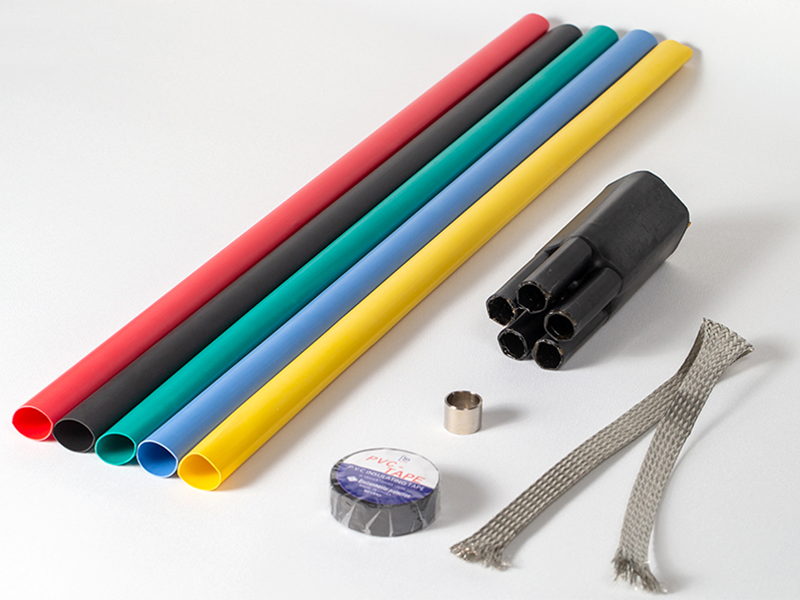

Our 1kV Heat Shrinkable Five Cores Termination Kit is a kind of insulation tube with high temperature shrinkage, soft flame retardant, insulation and corrosion prevention function. This product is mainly used in electric power, electronics, petroleum, chemical, construction, communication and other industries.
Technical specification
| Test item | Parameters |
| Wet Power Frequency Withstand Voltage Test | 4kV/1min |
| Power Frequency Withstand Voltage Test | 2.4kV14h |
Type Table
| Product Name | Item Code | Applicable Cable Section(mm²) | Product Name | Item Code | Applicable Cable Section(mm²) |
| Single Core Cable Termination | SY-1/1.0 | 10-16 | Single Core Straight Joint | JSY-1/1.0 | 10-16 |
| SY-1/1.1 | 25-50 | JSY-1/1.1 | 25-50 | ||
| SY-1/1.2 | 70-120 | JSY-1/1.2 | 70-120 | ||
| SY-1/1.3 | 150-240 | JSY-1/1.3 | 150-240 | ||
| SY-1/1.4 | 300-500 | JSY-1/1.4 | 300-500 | ||
| Two Cores Cable Termination | SY-1/2.0 | 10-16 | Two Cores Straight Joint | JSY-1/2.0 | 10-16 |
| SY-1/2.1 | 25-50 | JSY-1/2.1 | 25-50 | ||
| SY-1/2.2 | 70-120 | JSY-1/2.2 | 70-120 | ||
| SY-1/2.3 | 150-240 | JSY-1/2.3 | 150-240 | ||
| SY-1/2.4 | 300-500 | JSY-1/2.4 | 300-500 | ||
| Three Cores Cable Termination | SY-1/3.0 | 10-16 | Three Cores Straight Joint | JSY-1/3.0 | 10-16 |
| SY-1/3.1 | 25-50 | JSY-1/3.1 | 25-50 | ||
| SY-1/3.2 | 70-120 | JSY-1/3.2 | 70-120 | ||
| SY-1/3.3 | 150-240 | JSY-1/3.3 | 150-240 | ||
| SY-1/3.4 | 300-500 | JSY-1/3.4 | 300-500 | ||
| Four Cores Cable Termination | SY-1/4.0 | 10-16 | Four Cores Straight Joint | JSY-1/4.0 | 10-16 |
| SY-1/4.1 | 25-50 | JSY-1/4.1 | 25-50 | ||
| SY-1/4.2 | 70-120 | JSY-1/4.2 | 70-120 | ||
| SY-1/4.3 | 150-240 | JSY-1/4.3 | 150-240 | ||
| SY-1/4.4 | 300-500 | JSY-1/4.4 | 300-500 | ||
| Five Cores Cable Termination | SY-1/5.0 | 10-16 | Five Cores Straight Joint | JSY-1/5.0 | 10-16 |
| SY-1/5.1 | 25-50 | JSY-1/5.1 | 25-50 | ||
| SY-1/5.2 | 70-120 | JSY-1/5.2 | 70-120 | ||
| SY-1/5.3 | 150-240 | JSY-1/5.3 | 150-240 | ||
| SY-1/5.4 | 300-500 | JSY-1/5.4 | 300-500 |
Our 1kV Heat Shrinkable Five Cores Termination Kit is a kind of insulation tube with high temperature shrinkage, soft flame retardant, insulation and corrosion prevention function. This product is mainly used in electric power, electronics, petroleum, chemical, construction, communication and other industries.
Technical specification
| Test item | Parameters |
| Wet Power Frequency Withstand Voltage Test | 4kV/1min |
| Power Frequency Withstand Voltage Test | 2.4kV14h |
Type Table
| Product Name | Item Code | Applicable Cable Section(mm²) | Product Name | Item Code | Applicable Cable Section(mm²) |
| Single Core Cable Termination | SY-1/1.0 | 10-16 | Single Core Straight Joint | JSY-1/1.0 | 10-16 |
| SY-1/1.1 | 25-50 | JSY-1/1.1 | 25-50 | ||
| SY-1/1.2 | 70-120 | JSY-1/1.2 | 70-120 | ||
| SY-1/1.3 | 150-240 | JSY-1/1.3 | 150-240 | ||
| SY-1/1.4 | 300-500 | JSY-1/1.4 | 300-500 | ||
| Two Cores Cable Termination | SY-1/2.0 | 10-16 | Two Cores Straight Joint | JSY-1/2.0 | 10-16 |
| SY-1/2.1 | 25-50 | JSY-1/2.1 | 25-50 | ||
| SY-1/2.2 | 70-120 | JSY-1/2.2 | 70-120 | ||
| SY-1/2.3 | 150-240 | JSY-1/2.3 | 150-240 | ||
| SY-1/2.4 | 300-500 | JSY-1/2.4 | 300-500 | ||
| Three Cores Cable Termination | SY-1/3.0 | 10-16 | Three Cores Straight Joint | JSY-1/3.0 | 10-16 |
| SY-1/3.1 | 25-50 | JSY-1/3.1 | 25-50 | ||
| SY-1/3.2 | 70-120 | JSY-1/3.2 | 70-120 | ||
| SY-1/3.3 | 150-240 | JSY-1/3.3 | 150-240 | ||
| SY-1/3.4 | 300-500 | JSY-1/3.4 | 300-500 | ||
| Four Cores Cable Termination | SY-1/4.0 | 10-16 | Four Cores Straight Joint | JSY-1/4.0 | 10-16 |
| SY-1/4.1 | 25-50 | JSY-1/4.1 | 25-50 | ||
| SY-1/4.2 | 70-120 | JSY-1/4.2 | 70-120 | ||
| SY-1/4.3 | 150-240 | JSY-1/4.3 | 150-240 | ||
| SY-1/4.4 | 300-500 | JSY-1/4.4 | 300-500 | ||
| Five Cores Cable Termination | SY-1/5.0 | 10-16 | Five Cores Straight Joint | JSY-1/5.0 | 10-16 |
| SY-1/5.1 | 25-50 | JSY-1/5.1 | 25-50 | ||
| SY-1/5.2 | 70-120 | JSY-1/5.2 | 70-120 | ||
| SY-1/5.3 | 150-240 | JSY-1/5.3 | 150-240 | ||
| SY-1/5.4 | 300-500 | JSY-1/5.4 | 300-500 |
