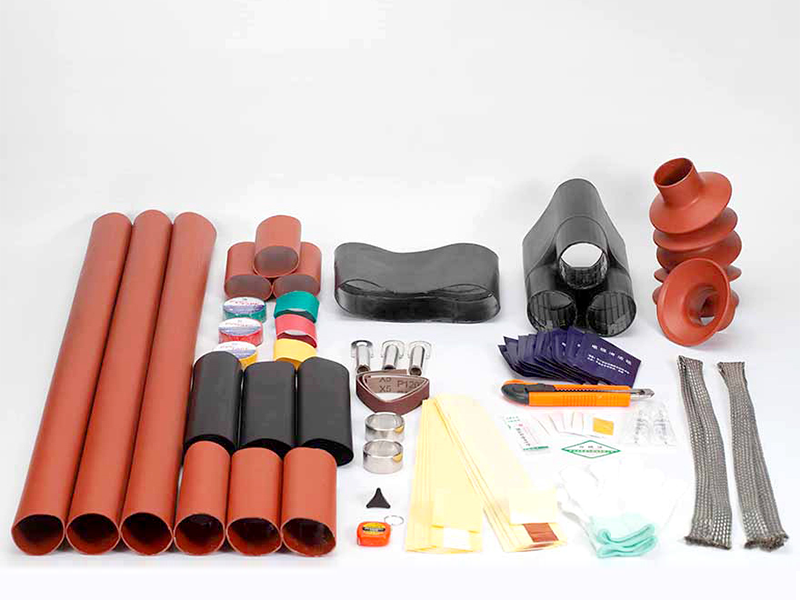

Our 24kV Heat Shrinkable Three Cores Termination Kit for Outdoor is a kind of insulation tube with high temperature shrinkage, soft flame retardant, insulation and corrosion prevention function. This product is mainly used in electric power, electronics, petroleum, chemical, construction, communication and other industries. The 24kV Heat Shrinkable Three Cores Termination Kit for Outdoor not only has excellent electrical performance and good mechanical properties, but also has the advantages of light weight, easy installation, aging resistance, adapt to the use of high temperature and cold conditions.
Technical specification
| Test item | Parameters |
| Wet Power Frequency Withstand Voltage Test (Outdoor) | 48KV(72KV)/1min |
| Dry Power Frequency Withstand Voltage Test (Indoor) | 54KV(81KV)/1min |
| Impact Pressure Test | 125kV1.2/50μs+10 times |
| Partial Discharge Test | ≤10pc(1.73Uo) |
Type Table
| Product Name | Item Code | Applicable Cable Section(mm²) |
| Three Cores Outdoor Termination | WSY-24/3.1 | 25-50 |
| WSY-24/3.2 | 70-120 | |
| WSY-24/3.3 | 150-240 | |
| WSY-24/3.4 | 300-500 |
