1.Product Introduction

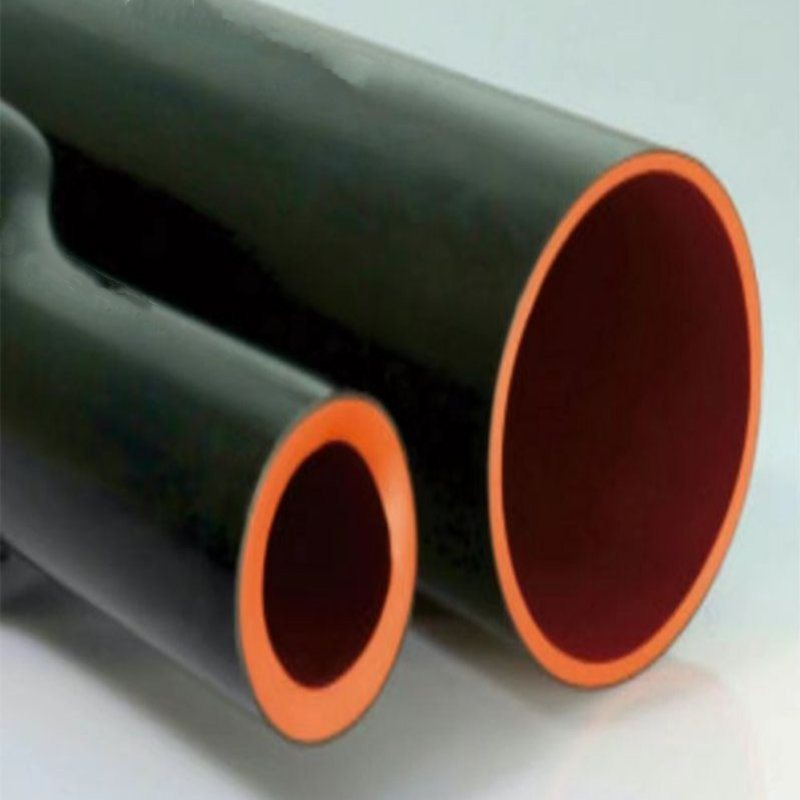

The Heat Shrinkable Compound Tube is suitable for heat-shrinkable power cable straight through joint, which can replace the combination of insulating tube and semi-conductive tube, effectively eliminate the gap between layers, and improve the operation reliability of the straight through joint. As one of the leading industries in heat shrinkable cable, Our Heat Shrinkable Compound Tube is widely used in electronic equipment wiring waterproof, wire branch sealing fixed. The Heat Shrinkable Compound Tube is mainly used for the connection of the middle end of the cable. Its structure is double layer, the inner layer is an insulating material with certain elasticity, and the outer layer is a conductive material or insulating material. The tube has the "memory effect" of heat shrinkable tube.
2.Product Parameter (Specification)
Technical Specification | |
Test Item | Parameters |
Water Absorption (%) | ≤0.2 |
Tensile Strength (MPa) | ≥12 |
Elongation at Break (%) | ≥400 |
Breakdown Strength (kV/mm) | ≥20 |
Inner Volume Resistivity (Ω.cm) | ≥1*1014 |
Outer Volume Resistivity (Ω.cm) | ≤1*104 |
The technical parameters for the Heat Shrinkable Compound Tube.
3.Product Feature And Application
1. Uv resistance
2. Waterproof and flame retardant
3. Chemical resistance
4. Can withstand harsh environment
5. Reduce distribution costs
