Gis Inner Cone Insulation Plug

1, Product Keywords

GIS Inner Cone Plug, GIS Dummy Plug, Inner Cone Insulation Blind Plug, 2#/3# Interface GIS Muffler Plug, High Voltage Silicone Sealing Plug, Gas Insulated Switchgear Seal Plug, EN50181 Standard Inner Cone Blanking Plug

2, Product Brief Introduction

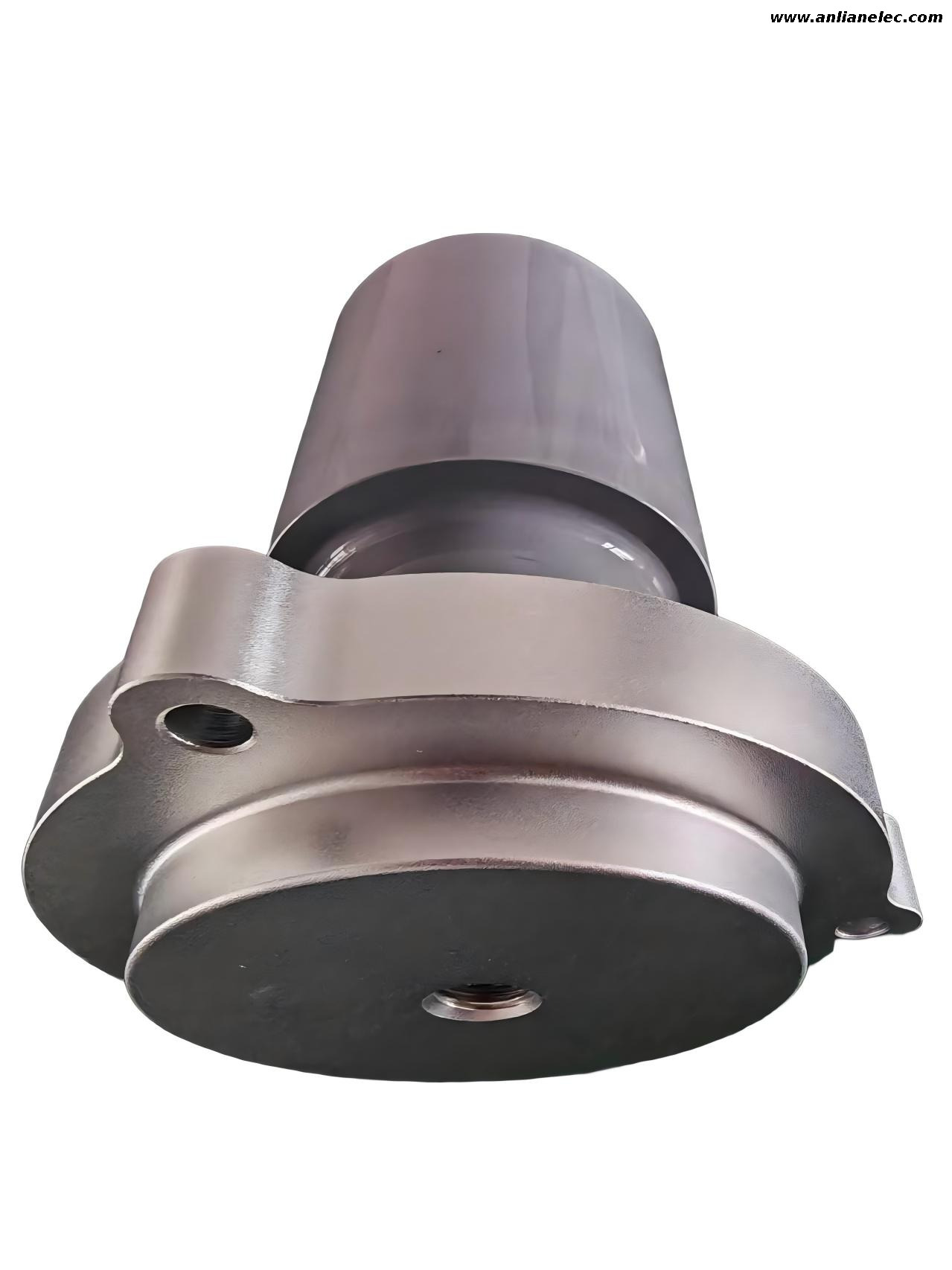

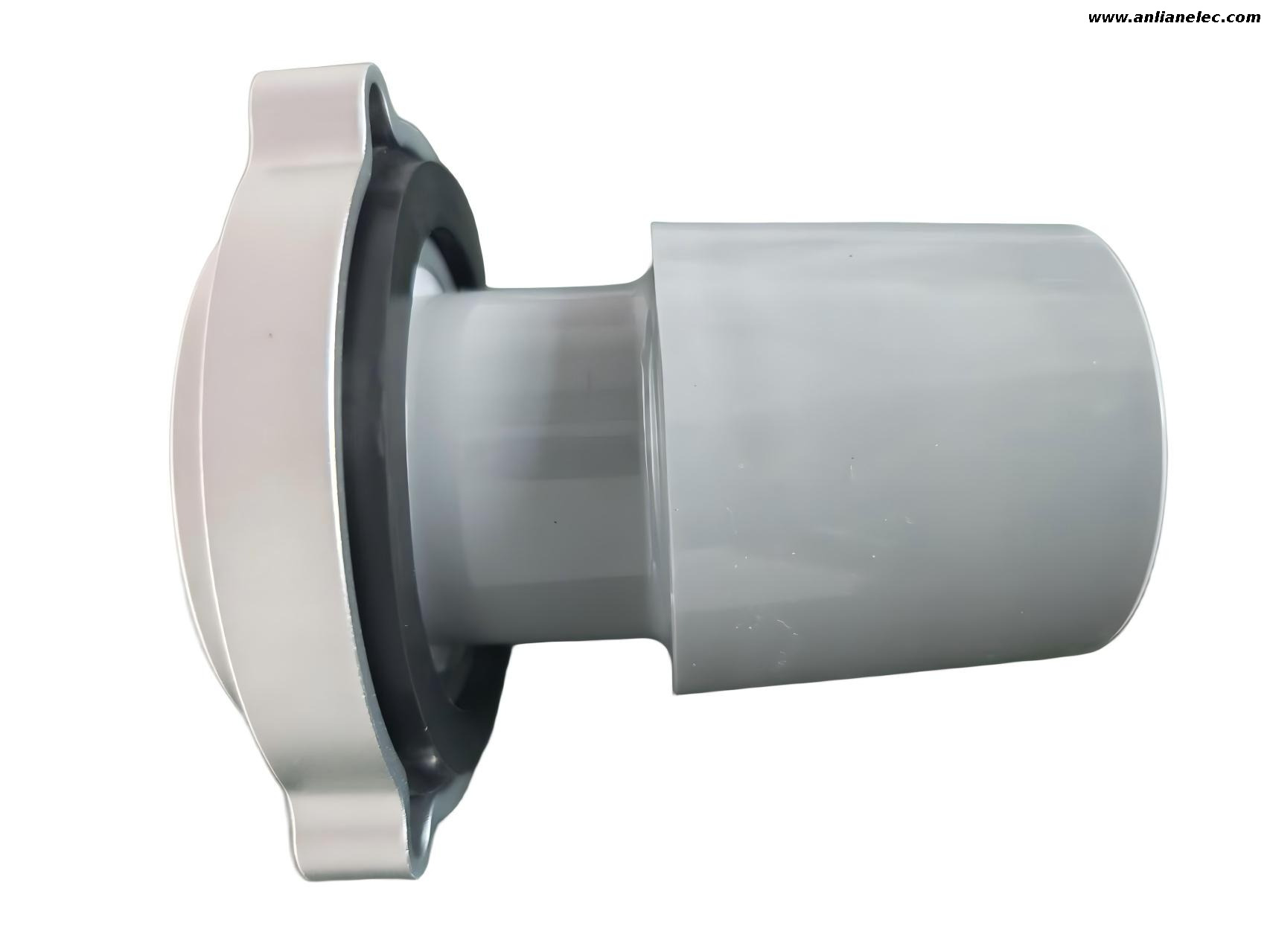

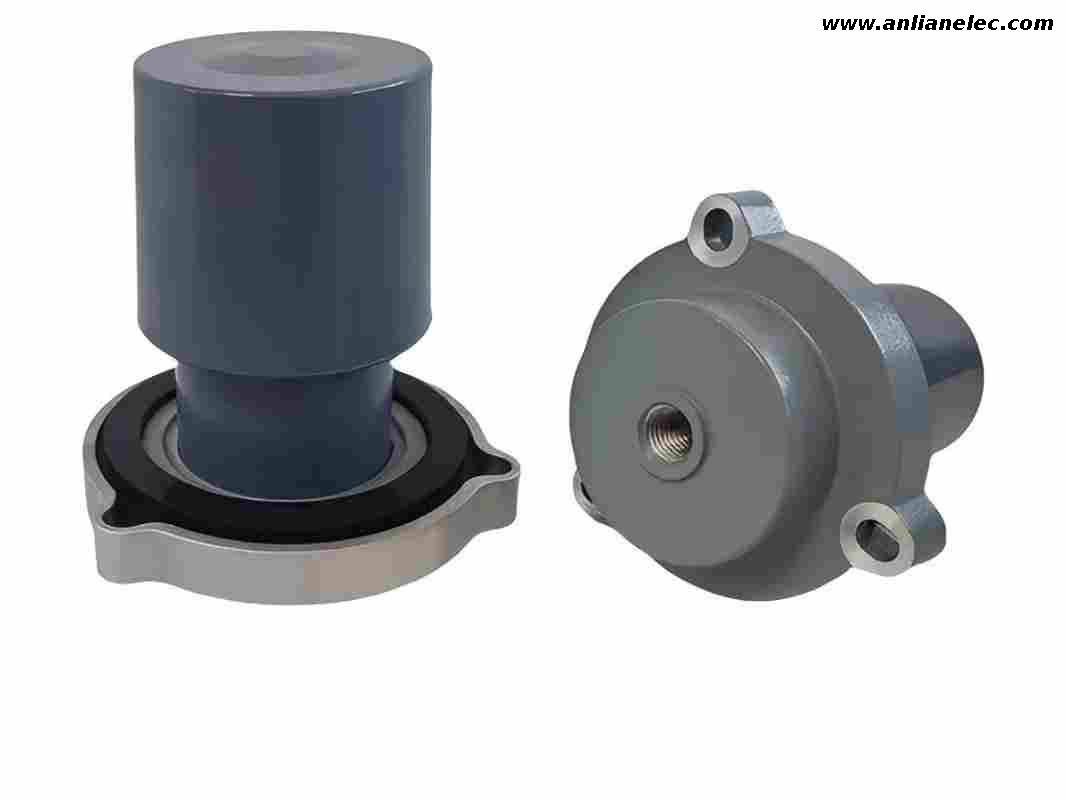

This GIS inner cone insulation plug (also called dummy plug / blind muffler plug) is a special sealing accessory for unused inner cone epoxy bushing interfaces of GIS/C-GIS and distribution transformers, complying with EN50181 international standard.

1. The insulating main body is molded by high-purity liquid silicone under high temperature and high pressure, featuring high insulation resistance, anti-corona, anti-aging and excellent partial discharge control performance;

2. Equipped with aluminum alloy quick-flange and EPDM integral sealing gasket, which realizes full-surface compression sealing to prevent SF6 gas leakage, moisture and dust intrusion inside the cabinet;

3. Integral stepped cone structure perfectly matches Type 2# / Type 3# inner cone interfaces, with quick mounting and disassembly without special tools;

4. All-dry maintenance-free design, no oil filling or inflation required, effectively isolates high-voltage electric field and guarantees long-term safe operation of switchgear.

   3. Application Scenarios

   1. Medium & High Voltage GIS / C-GIS Switchgear: Seal spare cable plug-in inner cone sockets in gas insulated switch cabinets;

   2. Distribution Transformer Outgoing Terminal: Block unused inner cone epoxy sleeve outlets of box transformers and prefabricated substation transformers;

   3. Power Distribution Room Engineering Transformation: Temporary isolation of test interfaces and reserved cable holes during power grid reconstruction;

   4. Prefabricated Cable Branch Box: Insulated sealing of spare inner cone plug ports for 10kV / 35kV cable branch equipment;

   5. New Energy Power Station: SF6 gas tank spare port sealing for wind & photovoltaic booster station switchgear.

4.Product Model Specification

Main Series Model Code
