Radiation crosslinked heat shrink sealing cap is suitable for wire and cable end waterproof, insulation and protection treatment, the mouth end is coated with high-performance hot melt adhesive, the sealing cap can shrink when heated, while the glue melts, tightly bonded to the surface of the cable, etc., play an excellent waterproof, insulation and protection effect.
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥12MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Volume Resistivity | IEC 60093 | ≥1x1013Ω.cm |
| Dielectric Strength | IEC 60243 | ≥15kV/mm |
| Brittle Temperature | ISO 974 | -40℃ |
| Heat Shock | 160℃，4h | No Crack |
| Water Absorption(23±2)℃ 24h | ISO 62 | ≤0.1% |
| Hardness（Shore A） | ISO 868 | ≥80 |

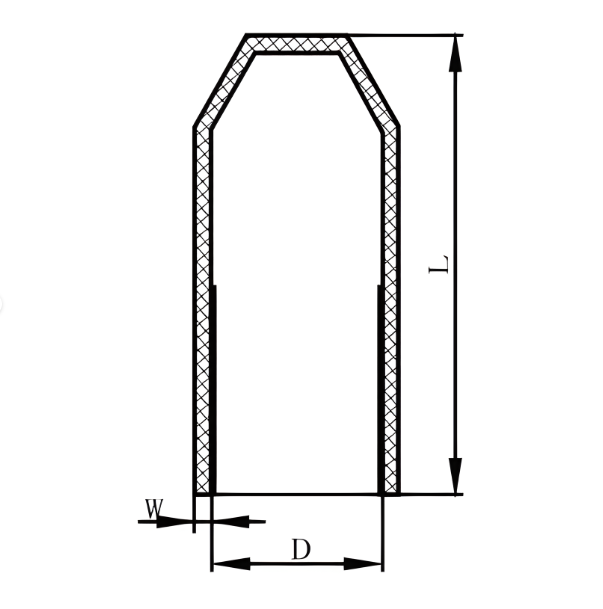

| Spec. | As Supplied（mm） | After Recovered | |||
Inner Diameter (D) Min | Wall Thickness (T) (±20%) | Height (L)(±5) | Inner Diameter (D) Max | Wall Thickness (T) (±10%) | |
| WRSFM-12 | 12 | 1.0 | 45 | 5 | 2.5 |
WRSFM-16 | 16 | 1.0 | 70 | 8.5 | 2.5 |
WRSFM-20 | 20 | 1.0 | 70 | 8.5 | 2.5 |
WRSFM-25 | 25 | 1.0 | 80 | 11 | 2.5 |
WRSFM-30 | 30 | 1.3 | 95 | 16 | 2.8 |
WRSFM-35 | 35 | 1.0 | 95 | 18 | 2.6 |
WRSFM-4 | 40 | 1.1 | 95 | 18 | 2.6 |
WRSFM-55 | 55 | 1.0 | 125 | 26 | 2.7 |
WRSFM-75 | 75 | 1.3 | 145 | 31 | 3.2 |
WRSFM-100 | 97 | 1.3 | 140 | 40 | 5.2 |
WRSFM-120 | 117 | 1.3 | 155 | 57 | 4.0 |
WRSFM-140 | 140 | 1.3 | 185 | 63 | 4.0 |
WRSFM-160 | 158 | 2.1 | 270 | 95 | 4.0 |
WRSFM-180 | 180 | 2.1 | 270 | 95 | 4.0 |
WRSFM-200 | 200 | 1.5 | 270 | 95 | 4.0 |
| WRSFM-250 | 245 | 1.5 | 270 | 95 | 4.0 |
