Product Introduction:

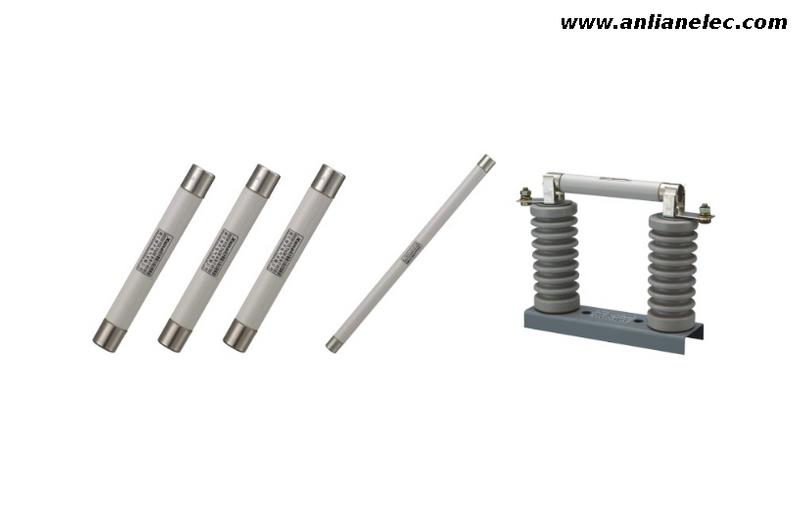

This high-voltage current limiting fuse is designed for indoor AC 50Hz systems with a rated voltage range of 3.6kV to 40.5kV, providing overload and short-circuit protection for voltage transformers. The product complies with GB15166.2 and IEC282-1 standards, offering efficient current limiting functionality to swiftly disconnect power in the event of a fault, protecting the equipment from damage.
Key Features:
1. Efficient Current Limiting: Quickly responds to system faults, reducing current surges.
2. Reliable Overload Protection: Ensures safe operation of voltage transformers during overload conditions.
3. Wide Voltage Range: Suitable for systems with voltage ratings from 3.6kV to 40.5kV.
4. Standardized Design: Complies with GB15166.2 and IEC282-1 international standards.
5. Easy Installation: Designed for use in various indoor high-voltage distribution systems.
Specifications:
• Rated Frequency: 50Hz
• Rated Voltage: 3.6-40.5kV
• Protection Target: Voltage transformer
• Standards: GB15166.2, IEC282-1
• Application: Indoor high-voltage distribution systems
Application Range:
This high-voltage current limiting fuse is widely used in industrial and power distribution systems, especially for voltage transformers requiring efficient and reliable overload and short-circuit protection. It is ideal for use in substations, factories, and other power facilities.
Installation Notes:
1. Inspect the fuse for integrity before installation to ensure it is undamaged and free from deformation.
2. Avoid installing the fuse in areas with high humidity, extreme temperatures, or corrosive environments.
3. Select the appropriate fuse model according to the system’s voltage level and the installation manual.
4. Ensure proper wiring during installation to prevent poor contact.
Precautions:
1. Regularly check the fuse’s condition and replace it promptly if it is consumed or blown.
2. Ensure the system is powered off during operation to prevent accidents.
3. Avoid using the fuse in environments with frequent operations; it should be used within its rated parameters.
4. Keep the fuse away from high humidity or strong vibrations to maintain its performance.
5. Installation and maintenance should be carried out by qualified professionals.
Technical Information
Technical Specification | |||
Model | XRNP□-12/-50 | XRNP□-24/-50 | XRNP□-40.5/-50 |
Rated voltage (kV) | 12(10) | 24(20) | 40.5(35) |
Rated current(A) | 0.2,0.5,1,2,3.15 | 0.2,0.5,1.2,3.15 | 0.2,0.5,1.2,3.15 |
Turn-on Current(kA) | 50 | 50 | 50 |
