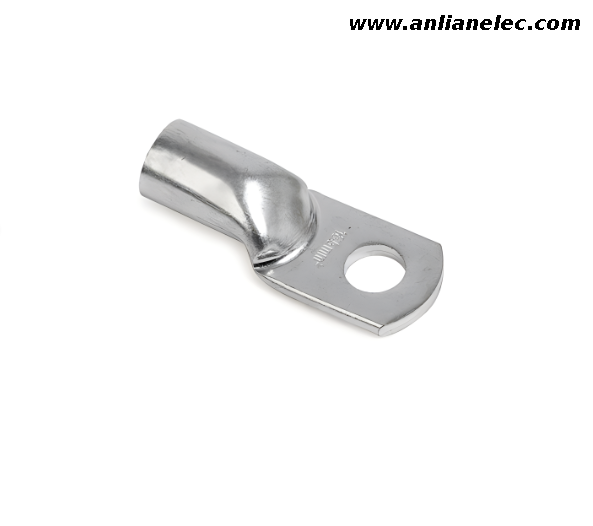

SC Series Wiring Tinned Copper Terminal

Product Name

SC Series Wiring Tinned Copper Terminal

Product Overview

The SC Series Wiring Tinned Copper Terminal is a high-quality product commonly used in electrical connections, widely applied in electrical engineering, power systems, and industrial automation. This series of terminals is made of premium tinned copper, offering excellent conductivity and corrosion resistance, ensuring efficient and reliable power transmission.

Key Features

• High Conductivity: Made from high-quality copper with tin plating, the terminals offer outstanding conductivity, low resistance, and high power transmission efficiency.

• Corrosion Resistance: The tin-plated surface enhances the terminal’s resistance to oxidation and corrosion, suitable for various harsh environments.

• Wide Application: Suitable for various cable connection scenarios such as power cable joints, internal equipment connections, and control cabinet wiring.

• Multiple Specifications: Available in various specifications to meet different wire gauge and current requirements, easy to install, and highly versatile.

Product Specifications

• Material: Tinned copper

• Current Range: 10A-1000A

• Applicable Wire Gauge: 0.5mm² - 300mm²

• Temperature Range: -40℃ to +105℃

• Standards: Compliant with RoHS and ISO9001 standards

Instructions for Use

1. Strip the insulation layer of the cable to expose an appropriate length of the conductor.

2. Insert the conductor into the terminal’s wiring hole, ensuring the wire is fully inserted into the terminal.

3. Use a crimping tool to securely crimp the conductor and terminal, ensuring a firm and reliable connection.

Precautions

• Ensure the terminal and cable specifications match before installation.

• Use standard-compliant crimping tools during crimping to avoid damaging the conductor with excessive force.

• Regularly inspect the connection status of the terminal to ensure it is functioning properly.
