Views: 0 Author: Site Editor Publish Time: 2025-09-08 Origin: Site
Ever wondered how to keep wires safe from moisture and damage? Heat shrink tubing is the answer. This versatile plastic tube shrinks when heated, providing a snug fit around electrical components. Developed in the mid-20th century, it has become essential in industries like automotive, aerospace, and electronics. In this post, you'll learn about its functionality, benefits, and diverse applications across various sectors.

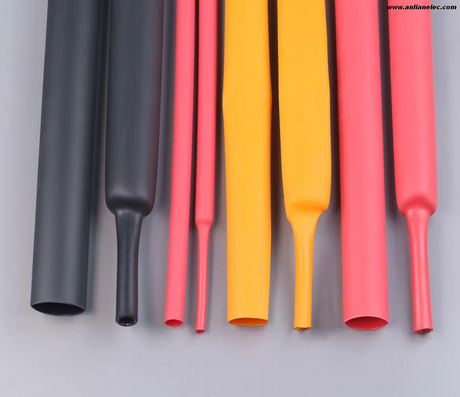

Heat shrink tubing is a clever plastic tube that shrinks when heated. It starts as a larger diameter tube made from thermoplastic material. Manufacturers expand it by heating and stretching, then let it cool. When you apply heat again, it shrinks back to its original size, tightly wrapping around wires or components.
This shrinking action creates a snug fit that protects and insulates. The tubing molds perfectly to shapes, covering connections, joints, or bundles of wires. Heat causes the material to soften and contract radially, ensuring no gaps remain. This tight seal keeps out moisture, dust, and abrasion, extending the life of electrical parts.
Different materials suit different jobs. Here are the most common ones:
Polyolefin: Most popular due to its heat resistance and durability. It handles temperatures up to 125-135°C. Perfect for industrial and mechanical uses.
Adhesive-Lined Polyolefin: Has a glue layer inside that melts during shrinking. This fills gaps and sticks to wires, offering extra protection from moisture and slipping.
PVC (Polyvinyl Chloride): Cheaper than polyolefin, but with a lower temperature limit around 105°C. It’s strong, abrasion-resistant, and available in many colors. Good for general-purpose, low-heat uses.
Other Materials: PTFE, FEP, silicone rubber, and Viton® are used for special applications needing chemical resistance or extreme conditions.
Choosing the right material depends on the environment, temperature, and protection needed.
Shrink ratio tells how much the tubing will reduce in size when heated. Common ratios include:
2:1: Most widely used. Tubing shrinks to half its original diameter. Works well for most wires and cables.
3:1: Shrinks to one-third of original size. Useful where tubing must cover irregular shapes or larger connectors.
4:1: Offers the highest shrinkage. Ideal for complex shapes or when a tight seal is critical.
Using the correct shrink ratio ensures tubing fits snugly without overstretching or leaving gaps.
Heat shrink tubing acts as a sturdy shield for wires and components. It blocks moisture, dust, chemicals, and UV rays, which can cause corrosion or damage. This protection is crucial in harsh environments like factories, outdoors, or marine settings. By sealing wires tightly, it prevents water and contaminants from causing shorts or failures. This extends the lifespan of electrical parts and reduces maintenance costs.
One of the primary benefits of heat shrink tubing is its excellent electrical insulation. It’s made from non-conductive materials that prevent accidental contact between wires, avoiding short circuits and electrical shocks. This insulation ensures safer operation of electrical systems and compliance with safety standards. It also helps maintain signal integrity by reducing interference and leakage in sensitive electronics.
Heat shrink tubing provides strain relief by supporting wires and connectors where they bend or flex. This reduces stress and prevents breaks or damage from repeated movement. The tubing’s tight fit also strengthens joints and splices, making connections more durable. This is especially important in automotive, aerospace, and industrial applications where vibrations and motion are common.
Using heat shrink tubing helps organize messy wiring into neat bundles. It keeps wires grouped together, reducing clutter and making systems easier to manage and troubleshoot. Color-coded tubing adds another layer of organization by identifying different wires or circuits quickly. Bundling wires with tubing also protects them from abrasion and tangling, improving overall system reliability.
Heat shrink tubing is a staple in electrical work. It insulates wires and connections, preventing shorts and electrical shocks. By tightly wrapping around splices, terminals, and joints, it guards against moisture, dust, and abrasion. This protection ensures circuits stay reliable and safe. Color-coded tubing also helps identify wires quickly, streamlining troubleshooting and maintenance.
In vehicles, wiring faces heat, vibration, and exposure to oils or chemicals. Heat shrink tubing resists these harsh conditions, shielding wiring harnesses and connectors. Adhesive-lined tubing provides extra moisture protection, crucial for engine compartments and undercarriages. It also offers strain relief, reducing wire fatigue from constant movement. Using heat shrink tubing extends the life of automotive electrical systems and prevents costly failures.
Aerospace and defense demand the highest reliability. Heat shrink tubing here must meet strict standards for temperature, flame resistance, and durability. It insulates sensitive wiring in aircraft, satellites, and military equipment, protecting against extreme temperatures and vibration. Specialized materials like fluoropolymers or Viton® tubing are common for their chemical resistance and performance under stress. This tubing ensures mission-critical systems remain operational and safe.
Inside gadgets, heat shrink tubing organizes tiny wires and prevents damage from bending or rubbing. It provides insulation to delicate circuits and connectors, reducing risks of shorts or interference. Strain relief from tubing protects cables that plug in and out frequently. Its compact size and variety of colors make it ideal for neat, reliable internal wiring in smartphones, computers, and home appliances.
Marine environments are tough on wiring due to saltwater, humidity, and UV exposure. Heat shrink tubing forms a watertight seal, preventing corrosion and electrical faults. Polyolefin tubing with adhesive lining is popular for its waterproof qualities. It protects boat wiring, navigation systems, and underwater lighting. This tubing’s resistance to chemicals and abrasion helps keep marine electronics safe and functional in harsh conditions.
Heat shrink tubing isn't just for wires. It can enhance tool handles and sports gear grips. Wrapping tubing around handles adds a comfortable, non-slip surface. It protects against wear and tear, extending the life of items like hammers, screwdrivers, tennis rackets, and baseball bats. The tubing molds tightly when heated, creating a smooth, cushioned grip that feels better in your hand. This is especially useful for tools or equipment exposed to moisture or heavy use.
Colorful heat shrink tubing makes labeling easy. Slide a small piece onto keys, toothbrushes, or garden tools to quickly identify ownership or purpose. For example, different colors on keys help you tell them apart at a glance. This is great for families, workplaces, or workshops. You can also label wires and cables by color-coding, simplifying troubleshooting and maintenance. Heat shrink tubing stays put and resists fading, so labels last a long time.
Heat shrink tubing can fix frayed laces, cracked handles, or worn grips. It acts as a durable patch that resists moisture and abrasion. For instance, damaged shoelaces or skate laces can be reinforced by slipping tubing over the worn area and shrinking it. This prevents further fraying. It also shields objects from dirt and chemicals, making it a handy repair tool around the house or workshop. The tubing’s tight fit keeps repairs neat and reliable.
Businesses can use heat shrink tubing to brand products or assemblies. Custom printed tubing with logos or product names wraps around cables, wires, or handles. This adds a professional touch and helps customers identify your brand easily. For manufacturers or assemblers, branding tubing on wiring harnesses or custom cables sets products apart. It also helps prevent counterfeiting and adds a layer of quality assurance. Custom tubing can be ordered in various colors and print styles to match your branding needs.
Selecting the right heat shrink tubing means looking closely at three main factors: material, shrink ratio, and temperature rating.
Material: The tubing’s material affects durability, flexibility, and resistance to heat, chemicals, or UV rays. For example, polyolefin is tough and heat resistant, ideal for industrial use. PVC is less expensive but handles lower temperatures. Specialty materials like silicone or fluoropolymers suit extreme conditions.
Shrink Ratio: This tells how much the tubing will shrink when heated. A 2:1 ratio means the tubing shrinks to half its diameter, great for most wires. For odd shapes or bigger connectors, 3:1 or 4:1 ratios work better because they shrink more.
Temperature Rating: The tubing must tolerate the highest temperature it will face. Using tubing rated too low risks melting or failure. For automotive or aerospace, choose tubing that withstands high heat.
Here’s a quick look at common heat shrink tubing materials and their features:
| Material | Temperature Range | Key Features | Best For |
|---|---|---|---|
| Polyolefin | Up to 135°C | Durable, flexible, UV resistant | Industrial, automotive |
| Adhesive-Lined Polyolefin | Up to 135°C | Moisture seal, strong adhesion | Moist or harsh environments |
| PVC | Up to 105°C | Cost-effective, abrasion resistant | General purpose, low heat |
| Silicone Rubber | Up to 200°C | Highly flexible, heat resistant | High-temp electronics |
| Fluoropolymers (PTFE, FEP) | Up to 260°C | Chemical resistant, flame retardant | Aerospace, chemical industry |
Choosing the right material depends on your environment and protection needs.
Match the tubing’s material to the environment. Use adhesive-lined tubing for wet or corrosive areas.
Pick a shrink ratio that fits the object without overstretching the tubing.
Check the temperature rating to avoid damage during operation.
Consider wall thickness if extra mechanical protection or insulation is needed.
Use color-coded tubing for easy wire identification and organization.
When in doubt, consult manufacturer datasheets or experts to ensure compatibility.
Applying heat shrink tubing is straightforward when you follow these steps:
Measure and Cut: Select tubing slightly longer than the area to cover. Cut it cleanly with scissors or a sharp blade.
Slide Tubing Over: Place the tubing over the wire, connector, or splice before making any connections.
Position Correctly: Ensure tubing fully covers the target area, leaving some overlap on each side.
Apply Heat Evenly: Use a heat gun or another heat source to warm tubing evenly. Keep the heat moving to avoid burning.
Watch It Shrink: Tubing will contract and tightly hug the surface. Continue heating until it conforms smoothly without bubbles or wrinkles.
Cool Down: Let the tubing cool naturally to set the seal and shape.
Heat Gun: The best tool for controlled, uniform heat. Adjustable temperature settings help prevent damage.
Lighter or Matches: Useful for small jobs but risk uneven heating or burning.
Hair Dryer: Works for thin tubing or delicate items but may need longer heating times.
Scissors or Utility Knife: For precise cutting of tubing to size.
Tweezers or Pliers: Helpful to hold small tubing pieces in place during heating.
Overheating: Applying too much heat can melt or burn tubing. Use moderate heat and keep the heat source moving.
Underheating: Insufficient heat means tubing won’t shrink fully, leaving gaps or loose fits.
Wrong Size Tubing: Tubing too large won’t shrink enough; too small may overstretch or tear.
Not Sliding Tubing On Before Connecting: Trying to add tubing after connections are made is often impossible.
Uneven Heating: Heating one spot too long causes bubbles or wrinkles. Move heat source steadily.
Cutting Tubing Too Short: Leaves exposed areas vulnerable to damage or moisture.
Heat shrink tubing offers protection, insulation, strain relief, and organization for wires and components. Its diverse applications include electrical, automotive, aerospace, consumer electronics, and marine industries. Future trends may see more innovative uses in branding and repairs. Anlian Electric provides high-quality heat shrink tubing, ensuring durability and reliability in harsh environments. Their products enhance safety and efficiency, making them essential for maintaining and improving electrical systems.
A: Heat shrink tubing is used to insulate wires, protect components from moisture and abrasion, and provide strain relief in electrical systems.
A: Heat shrink tubing works by shrinking when heated, tightly wrapping around wires or components to create a protective and insulating seal.
A: Adhesive-lined heat shrink tubing provides extra moisture protection by melting adhesive during shrinking, ensuring a tight, waterproof seal.
A: Benefits include environmental protection, electrical insulation, strain relief, and organized wiring, enhancing safety and system reliability.
