Views: 0 Author: Site Editor Publish Time: 2025-11-10 Origin: Site
Medium voltage cable terminations play a pivotal role in ensuring safe, reliable power distribution. These terminations are used to connect cables to equipment like transformers and switchgear, ensuring efficient power flow. The right choice of Medium Voltage Cable Terminations significantly impacts system performance, safety, and longevity.
In this article, we’ll guide you through the key factors to consider when selecting 10KV Medium Voltage Cable Terminations and Joints. We’ll explore different termination types and provide insights into how to make the best choice for your project needs.
Heat shrink terminations are one of the most commonly used solutions for medium voltage cables. These terminations involve a special heat-shrinkable material that, when heated, contracts tightly around the cable, forming a secure and insulated seal. This type of termination offers a reliable method for ensuring proper electrical insulation and protection.
The key advantages of heat shrink terminations include cost-effectiveness, ease of installation, and wide availability. They are ideal for standard applications where environmental factors such as UV exposure or moisture are not major concerns. However, heat shrink terminations require a heat source for installation, which may not be suitable in high-risk or confined environments. Additionally, they may be less effective in applications where extreme weather conditions or flammable environments are present.
Cold shrink terminations offer an alternative to heat shrink options. These terminations use elastomeric materials that contract and form a tight seal around the cable without the need for heat. The pre-stretched elastomeric components are designed to shrink upon installation, providing a secure, waterproof, and electrically insulated connection.
The main benefits of cold shrink terminations include faster installation and superior weather resistance. They are particularly well-suited for outdoor and high-risk environments, such as applications exposed to UV radiation or hazardous chemicals. Cold shrink terminations also provide enhanced safety since no heat is required during installation. However, these terminations tend to be bulkier and more expensive than heat shrink alternatives, making them a less cost-effective solution for some projects.
Pre-moulded slip-on terminations are factory-engineered and pre-formed, making them easy to install. These terminations are designed to slip over the cable end and offer a precise fit. The factory assembly ensures a high level of accuracy and consistency during installation, reducing the potential for human error.
Pre-moulded slip-on terminations provide a streamlined and highly reliable solution, especially in environments that require strict performance standards. However, the cost of pre-moulded solutions is typically higher due to the manufacturing process and the specialized nature of the product. This makes them a more suitable choice for projects that prioritize long-term reliability and precision.
The choice between indoor and outdoor terminations is heavily influenced by the environmental conditions where the cable will be installed. Outdoor terminations are specifically designed to withstand harsh weather conditions. These terminations are made from UV-resistant and weatherproof materials to ensure that the cable connections remain intact despite prolonged exposure to the elements.
On the other hand, indoor terminations are more compact and space-efficient, making them ideal for controlled environments, such as switchgear rooms or substations. While they do not need to offer the same level of weather resistance, indoor terminations still need to provide reliable electrical insulation and stress control. Choosing the correct type based on location ensures the longevity and efficiency of the cable system.

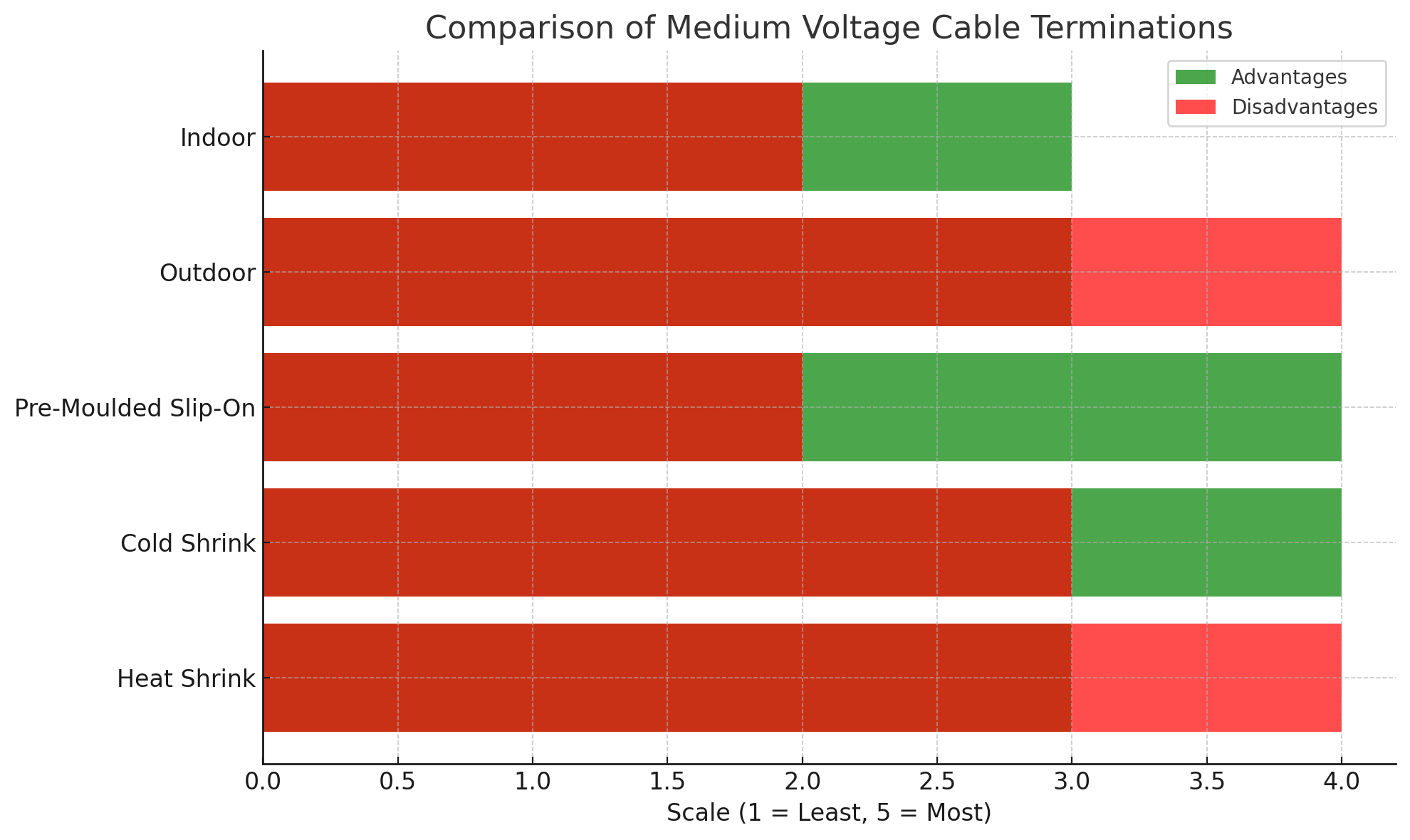

Termination Type | Advantages | Disadvantages | Ideal Use Case |
Heat Shrink Terminations | Cost-effective, widely available | Requires heat for installation, less suitable for high-risk areas | Standard applications, low-risk environments |
Cold Shrink Terminations | Faster installation, better weather resistance | Bulkier, more expensive | Outdoor, hazardous environments, weather-resistant areas |
Pre-Moulded Slip-On Terminations | Precise installation, reduces human error | Higher upfront cost | High-precision applications, reliable performance required |
Outdoor Terminations | UV and weather-resistant materials | Larger size, may not fit tight spaces | External installations exposed to the elements |
Indoor Terminations | Space-efficient, easy installation | Less weather-resistant | Indoor environments with controlled conditions |
One of the most critical factors when selecting medium voltage cable terminations is ensuring that the termination matches the voltage rating of the cable. For instance, a 10 kV cable should only be paired with a termination rated for at least 10 kV to ensure the electrical integrity of the system. It is essential to assess both the voltage rating and the cable type—single-core, three-core, armored, or unarmored—to select the appropriate termination.
Failing to match the voltage rating properly can result in electrical faults, reduced performance, or even complete system failure. Therefore, always verify that the termination is specifically rated for the voltage of the cable being used.
The operating environment plays a crucial role in determining the best medium voltage cable termination. For instance, if the cable is installed underground or in a substation, the termination must be resistant to moisture, chemicals, and mechanical stress. If the cable is exposed to outdoor elements, UV resistance and weatherproofing become critical factors.
Choosing the right termination material is vital to ensure that it can withstand the environmental stresses and continue to perform reliably throughout the lifespan of the cable. For high-risk applications, such as those in areas prone to flooding or extreme temperatures, cold shrink terminations or pre-moulded solutions may offer better protection.
When choosing medium voltage cable terminations, the available installation space is another crucial factor to consider. Some installations may have limited space, especially in compact environments like switchgear rooms or industrial control panels. In these cases, indoor terminations that are compact and easy to install are preferable.
In contrast, outdoor applications may have more room for installation, allowing for the use of bulkier but more durable termination options like cold shrink terminations. The installation process itself should also be taken into account, as terminations that require extensive assembly or a heat source may not be practical in environments where quick, low-skill installation is needed.
While it’s tempting to opt for the most affordable termination solution, it’s important to weigh initial costs against long-term performance and maintenance needs. In some cases, investing in a higher-quality termination such as a cold shrink or pre-moulded slip-on solution can save money in the long run by reducing maintenance needs and improving reliability.
Terminations that offer better weather resistance, UV protection, and mechanical strength are typically more expensive initially, but their durability often leads to fewer failures and repairs, making them more cost-effective over time.
Ensuring that the selected medium voltage cable terminations comply with relevant regulatory standards is paramount. Standards such as those set by the IEC, IEEE, and national codes ensure that the terminations are built to meet rigorous safety and performance criteria. Compliance with these standards not only guarantees the safety of the installation but also ensures that the termination will perform reliably under the specified conditions.
Safety is a top priority when selecting cable terminations, as improper terminations can lead to hazardous conditions like electrical arcs, fires, or system failures. Choosing terminations that are arc flash-protected and flame-retardant is essential to minimize the risks associated with medium voltage systems.
Factor | Consideration | Why It Matters |
Voltage Rating | Ensure the termination matches the cable’s voltage rating | Prevents electrical faults and system failure |
Environmental Conditions | Consider factors like moisture, UV exposure, and temperature | Determines durability and reliability in the field |
Installation Space | Account for available space during installation | Ensures the termination fits and is easy to install |
Budget vs. Longevity | Weigh initial cost against long-term performance and maintenance | Balances upfront cost with future savings |
Regulatory Compliance | Ensure the termination meets IEC, IEEE, or national standards | Guarantees safety and reliability |
First, confirm the voltage requirements of the system to ensure that the termination matches the cable’s voltage rating. For example, a 10 kV system should be paired with a 10 kV-rated termination. Then, consider the type of cable being used—whether it’s single-core, three-core, armored, or unarmored—and match the termination type accordingly.
The next step is to evaluate the environmental conditions where the cable will be installed. Is the cable going to be used outdoors, underground, or in a substation? Based on these conditions, choose a termination that offers adequate protection against moisture, UV exposure, and extreme temperatures.
Understand the materials used in different termination types—heat shrink, cold shrink, and pre-moulded—and their suitability for the installation environment. For example, cold shrink terminations are ideal for outdoor applications where weather resistance is critical.
Finally, after considering performance requirements, environmental factors, and budget constraints, choose the termination that best meets the needs of the project. While cost is important, prioritize durability and reliability to ensure long-term performance.
Many installations fail due to poor environmental consideration. Not accounting for moisture, UV radiation, or extreme temperatures can result in premature failure. Always assess the environmental conditions before making a termination choice.
Choosing a termination with the wrong voltage rating can lead to system failure and safety risks. Always verify that the termination matches the voltage rating of the cable.
Overlooking regulatory compliance can lead to unsafe installations and operational failures. Ensure that all terminations comply with international standards like IEC and IEEE.
Mistake | Consequence | Solution |
Ignoring Environmental Impact | Premature failure due to unsuitable material or installation | Assess environmental factors before making a choice |
Choosing the Wrong Voltage Rating | Risk of electrical faults and reduced system efficiency | Verify voltage rating matches the cable specifications |
Skipping Compliance Checks | Safety hazards, regulatory non-compliance | Ensure compliance with relevant industry standards |
Choosing the right medium voltage cable terminations is essential for ensuring safety, reliability, and efficiency in electrical systems. By understanding the various types of terminations, considering environmental factors, and following industry standards, you can make informed decisions that enhance performance and reduce long-term costs. Prioritize durability, compliance, and safety for optimal results. For complex installations, Anlian Electric offers valuable expertise and high-quality products to help you select the best terminations for your needs.
A: Medium Voltage Cable Terminations are components used to safely connect medium voltage cables to electrical equipment, ensuring efficient and secure power distribution.
A: Select terminations based on voltage rating, environmental conditions, and installation space. Ensure compliance with industry standards for safety and durability.
A: Proper Medium Voltage Cable Terminations minimize energy loss, reduce maintenance costs, and ensure long-term safety and efficiency in electrical systems.
A: The cost depends on the termination type, material, and environmental factors. Premium options offer longer durability but come at a higher price.
A: While basic installations may be DIY, it's recommended to consult professionals for 10KV Medium Voltage Cable Terminations and Joints to ensure proper functionality and safety.
