High Power Rail Type Junction Box

Product Name

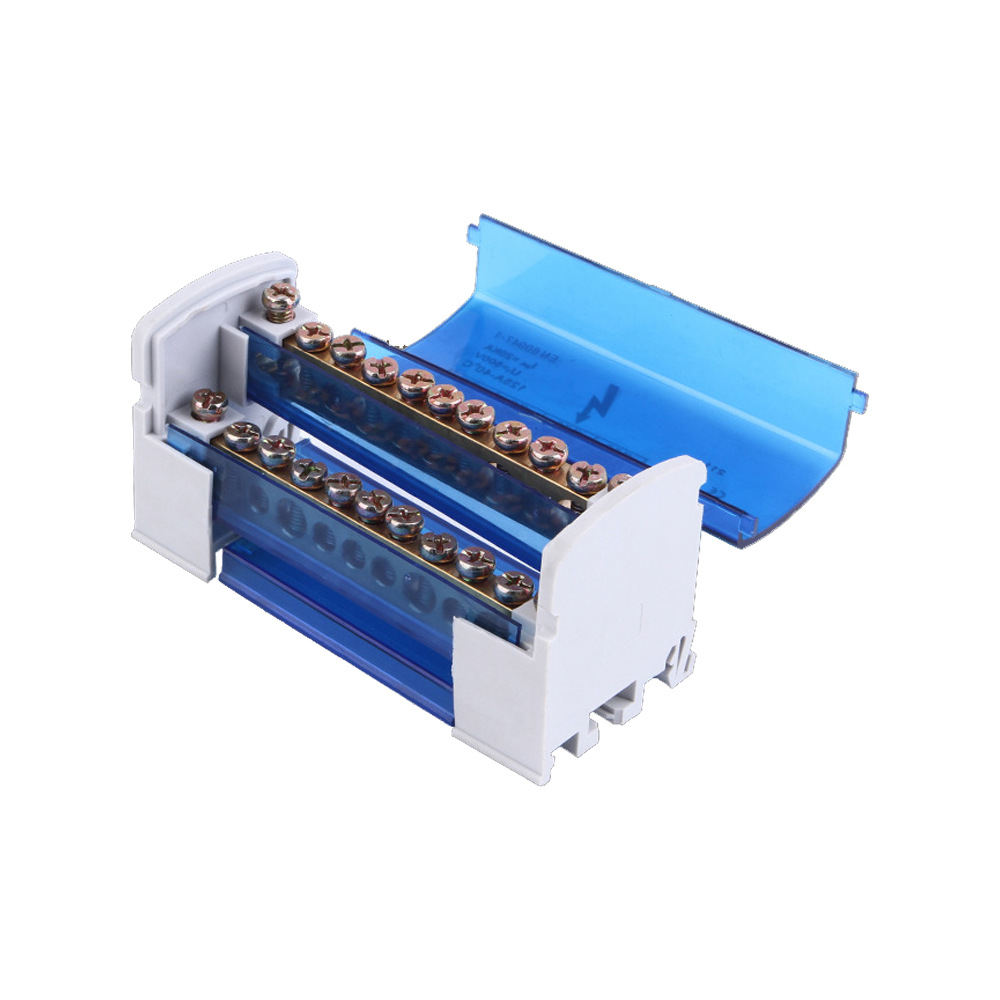

Multi-functional DIN Rail Power Distributor

Product Overview

This multi-functional DIN rail power distributor is a crucial component in electrical engineering, designed for power distribution and management, widely used in various industrial and commercial settings. Its superior structural design and high-quality materials ensure safety, durability, and efficiency.

Key Features

• High Transparency Protective Cover: Made of high transparency material, the protective cover allows users to visually inspect the internal connections and is easy to open and close.

• Modular Design: The modular design facilitates easy installation and maintenance, supporting flexible expansion and modification.

• High Strength Insulating Material: Both the housing and internal components are made of high-strength insulating materials, providing excellent impact resistance and high-temperature performance.

• Multi-functional Terminals: Each terminal is clearly labeled, supporting connections of various cable sizes, ensuring efficient and reliable power distribution.

Product Specifications

• Rated Voltage: 400V

• Rated Current: 125A

• Wiring Range: 1.5-25mm²

• Protection Level: IP20

• Installation Method: Standard DIN rail installation

Instructions for Use

1. Mount the distributor on a standard DIN rail, ensuring it is securely fixed.

2. Open the protective cover, and connect the cables to the corresponding terminals as needed, ensuring secure connections.

3. Close the protective cover, ensuring all connection points are covered to prevent accidental electric shock.

Precautions

• Installation and wiring should be performed by professional electricians to ensure compliance with relevant electrical safety standards.

• Regularly inspect the connections of the distributor to ensure it is functioning properly.

• Avoid using in humid or corrosive gas environments.
